Description
The standard RT 45 button is embedded in a flush-mounted socket with a solid and stylish aluminium frame.
The frame is available in 6 different designs in colours to match the RT 45 button. It is also available in « anodised aluminium ».
- For 24 V DC D+H smoke vent control panels

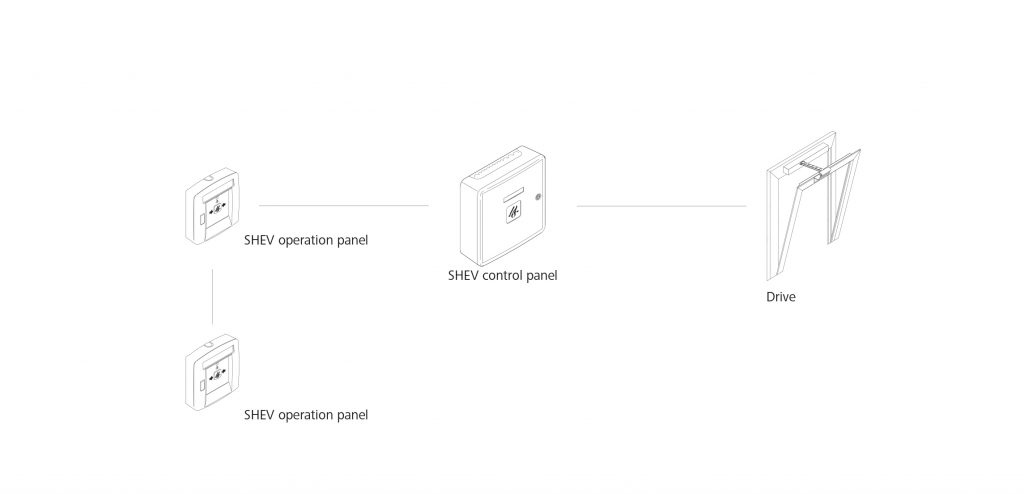

- Can be used as main or auxiliary control panel
- For manually triggering a SHEV system in case of fire
- Function: SHEV OPEN, SHEV Reset
- Display: Operational standby, alarm triggered and fault
- Integrated ventilation button, optional
- Lockable surface‑mounted aluminium die‑cast housing with break‑type glass, keys and designation labels in 32 languages
- Available in 5 powder‑coated colours
Technical specifications
- Input voltage: 18 … 28 V DC
- Type of protection: IP 40
- Temperature range: -5 °C … 40 °C
- Housing: Die-cast aluminium
- W x H x D: 129 x 138 x 39 mm
- Weight: 0.31 kg
Available in Orange - Grey - Red - Blue - Yellow colors - Also version LT with ventilation cmd
