Centraux de commande désenfumage

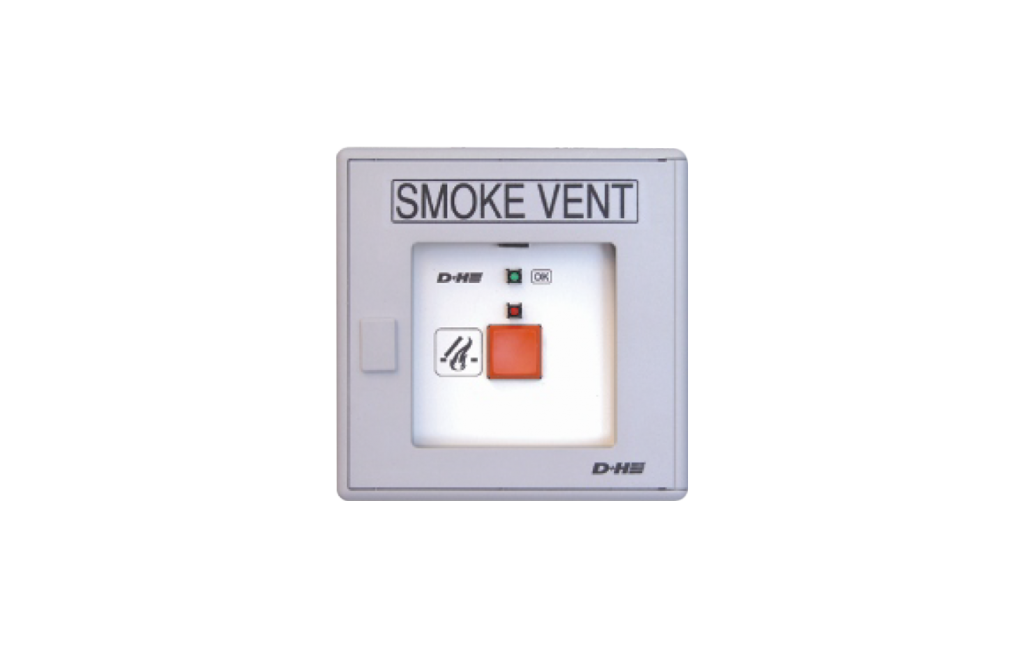

RT 42-H

Smoke Vent Buttons

Datasheet

Informations

Description

In case of fire the smoke vent buttons RT 43, RT 42 and RT 41 are used for the manual release of the system, in connection with D+H smoke vent systems of the type RZN. In addition the operation and alarm conditions are displayed (except RT42-F). The types RT43-H und RT43-N are approved by VdS as smoke vent control panels according to the guidelines no. 2592. Due to the large range of types, almost every structural requirement is fulfilled.

Technical specifications

  • smoke vent button-main control panel, 24V, surface type design
  • following DIN 14655
  • plastic housing lockable, colour grey (RAL 7035) with break-type glass and key
  • alarm display and pilot light
  • fault indicator
  • CLOSED-button concealed
  • possibility of smoke vent sign in national language
  • also available in red (RAL 3000), blue (RAL 5009) and yellow (RAL 1004)
