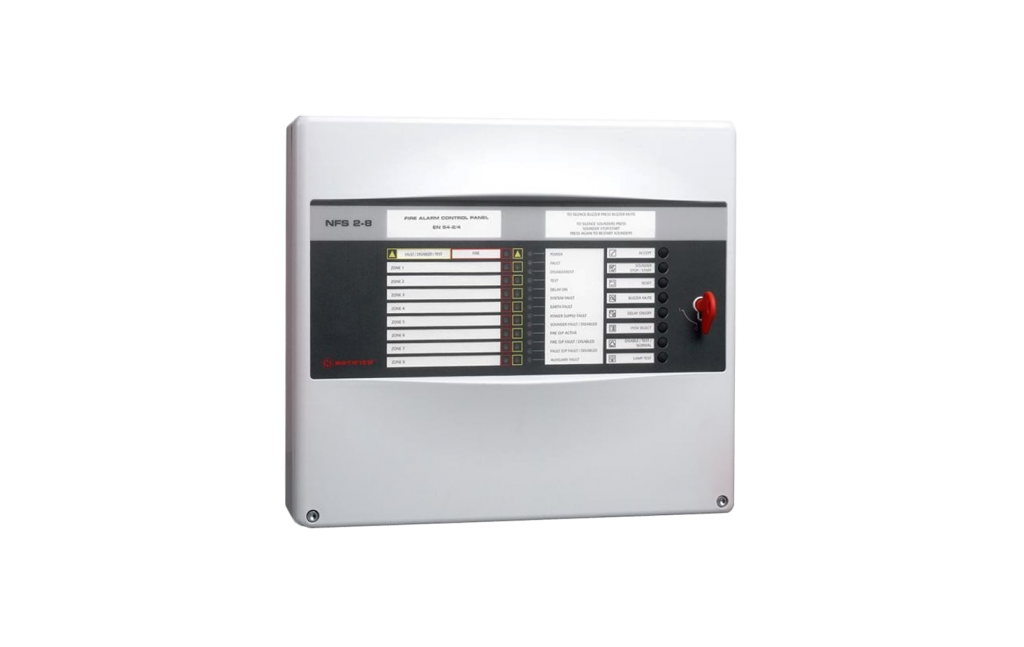

The Notifier NFS 2-8; 2, 4 & 8 Zone Conventional Fire Indicator Panels have been developed with efficiency in mind, offering a technically advanced range of facilities and functions while remaining easy to install, program and operate. A full range of conventional detectors, beam detectors, manual call points, duct-mounting applications, audible and visual devices complement the NFS 2-8 series.
The NFS 2-8; 2, 4 or 8 zone conventional fire alarm panels are ideally suited for facilities such as offices, shops, hotels, B & B’s, clubs, small industrial units, nursing homes, schools, etc.. offering a wide range of benefits to installer and end-users.
- Input Supply: 230VAC ± 15%, 50/60Hz, 1.6A
- Output Voltage: 18.5 to 28.5VDC
- Output Current: 1.8A (includes charger current – charger disabled during alarm)
- Operating Temperature: -5ºC to +45ºC
- Humidity: 5% to 95% Non condensing
- IP Rating: IP30
8 Way Relay Card.
Two-way Relay Module
Conforms to EN54 Pts. 2 & 4
